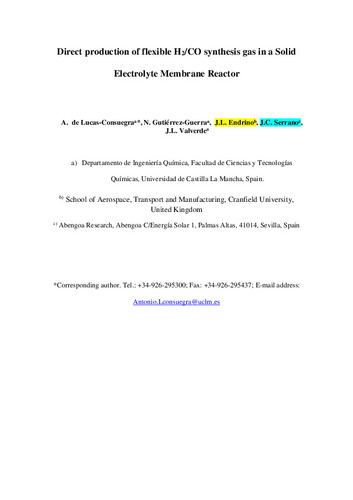

Direct production of flexible H2/CO synthesis gas in a solid electrolyte membrane reactor

Abstract

The development of novel configurations for the production of synthesis gas (syn-gas) of flexible H2/CO ratio is of great importance to reduce the cost for the synthesis of synfuels and high-value chemicals. In this work, we propose a radically novel approach to the direct production of syn-gas with flexible H2/CO ratio based on the solid electrolyte membrane reactor (SEMR). For that purpose, a single-chamber solid electrolyte membrane reactor based on yttria-stabilized zirconia (YSZ) has been developed (Pt/YSZ/Pt), where both active Pt catalysts–electrodes were exposed to the same reaction atmosphere (C2H5OH/H2O = 0.7 %/2 %). The application of different polarizations at temperature range (600–700 °C) allows to control the H2/CO ratio of the obtained syn-gas, i.e., the ratio was varied between 1.5 and 12 under polarization conditions. Unlike conventional catalytic partial oxidation processes, the H2/CO adjustment was managed without the requirement of external O2 feeding to the reactor. An increase in the applied current or potential caused the H2/CO ratio to increase vs. the open-circuit conditions where ethanol reforming occurred on the Pt catalyst–electrodes which is due to an increase in the rate of the electro-catalytic processes. On the other hand, a decrease in the H2/CO ratio at a fixed potential was achieved at higher temperatures due to the further reaction of the produced H2 with the rest of the species present in the gas phase, leading to a decrease in the faradaic efficiency. The proposed configuration may be of great interest especially for biorefinery applications where H2, syn-gas and electricity may be produced from bioethanol.

Es la versión preprint del artículo. Se puede consultar la versión final en https://doi.org/10.1007/s10008-015-2922-8
